Hammer Mill + Chipper + Grinder - All in One

Ritlee manufacture and supply a wide range of Agricultural Equipment and Machinery specifically suited to the Southern African climate and agricultural needs. All our products undergo rigorous testing and research to ensure they meet the requirements needed.
Petrol engine TRF300 with 5,5hp Briggs producing 50 to 1400 kg/hour Max diameter when chipping 20mm

Electric, petrol or diesel Hammer Mill with direct mount or V belt mount.

  • Comes with 12 month warranty & Commercial 3 months “bring in” warranty against faulty manufacture.
  • Ideal for organic garden waste, seeds, maize corn, leaves, straw, bark, cane etc.
  • Available in 6 Models

Click to add this item to cart.

Product Description

Hammer Mill and Chipper from Ritlee

Electric and Petrol hammer mill and chipper is manufactured by using premium quality material and modern techniques in adherence with several defined norms.

  • The offered range is well tested and proven
  • All come with a set of 4 screens with each unit
  • all parts are replaceable
  • Manufactured in Brazil.

Features:

  • Abrasion resistance
  • Longer service life
  • Resistance against rust

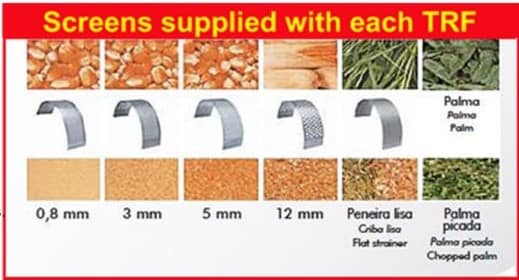

Each hammer mill unit is supplied with 4 screens + blank screen for chipping

  • 1st Screen is 0.8mm for fines
  • 2nd Screen is 3.0mm for fine broken grain
  • 3rd Screen is 5.0mm for broken grain
  • 4th Screen is 12.0mm for coarse chunks
  • 5th Screen is a blank screen for chipping green crop or wood

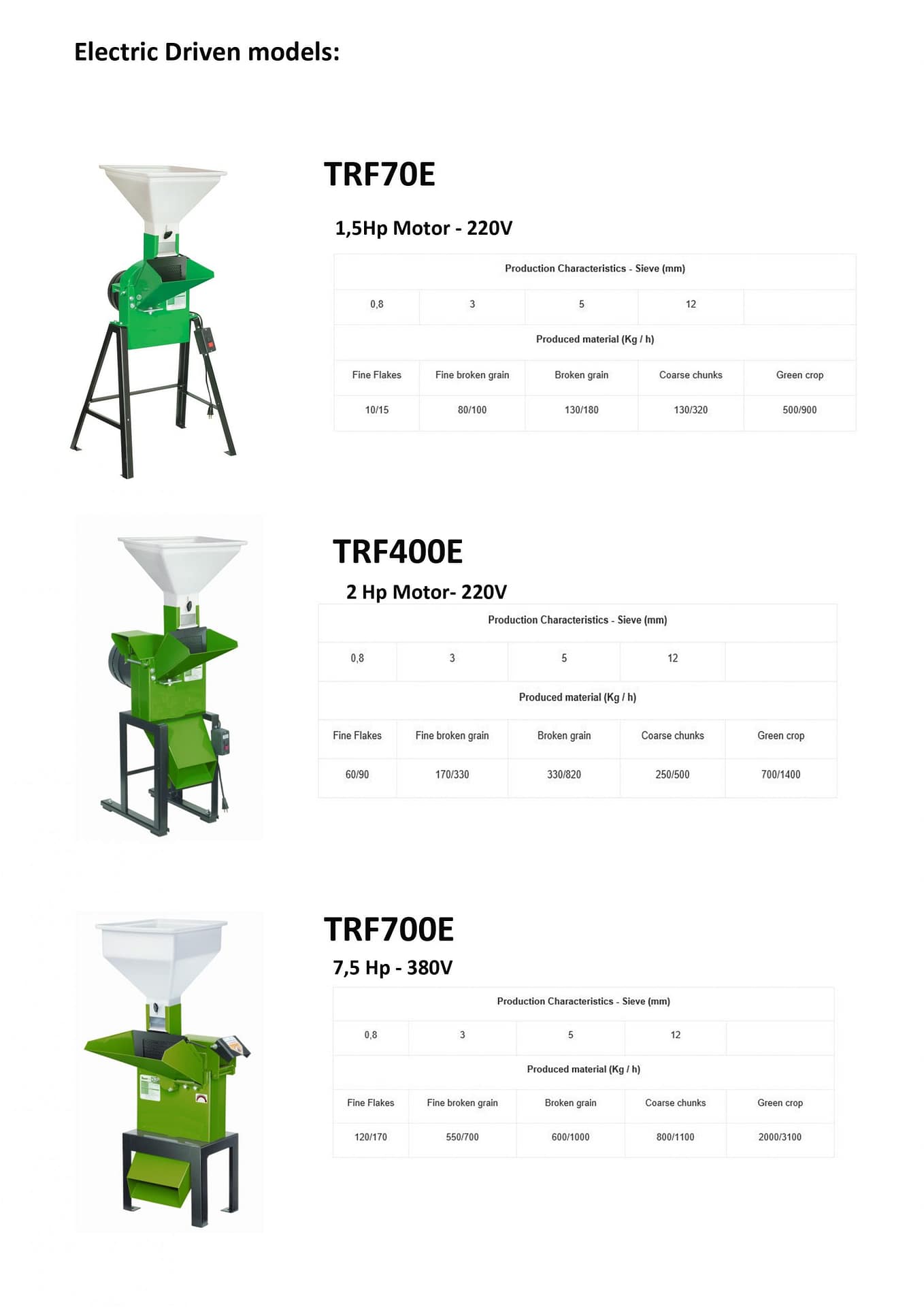

TRF Electric Hammer Mill, Chipper, Grinder Models:

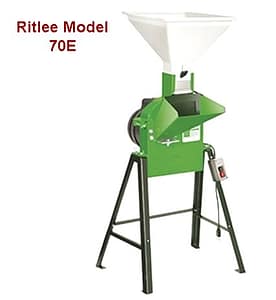

Electric TRF70E Hammermill

Electric TRF70E with 1,5hp, 220V Producing from 10 to 900 kg/hour Max diameter when chipping 20mm

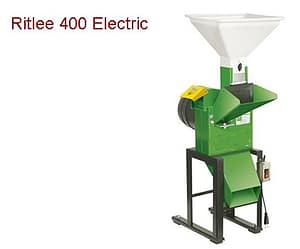

Electric TRF400E Hammermill

TRF400E with 2,0hp, 220V Producing from 60 to 1400 kg/hour Max diameter when chipping 25mm

Electric TRF700E Hammermill

Electric TRF700E with 7,5hp, 380V Producing from 120 to 3100 kg/hour Max diameter when chipping 30mm

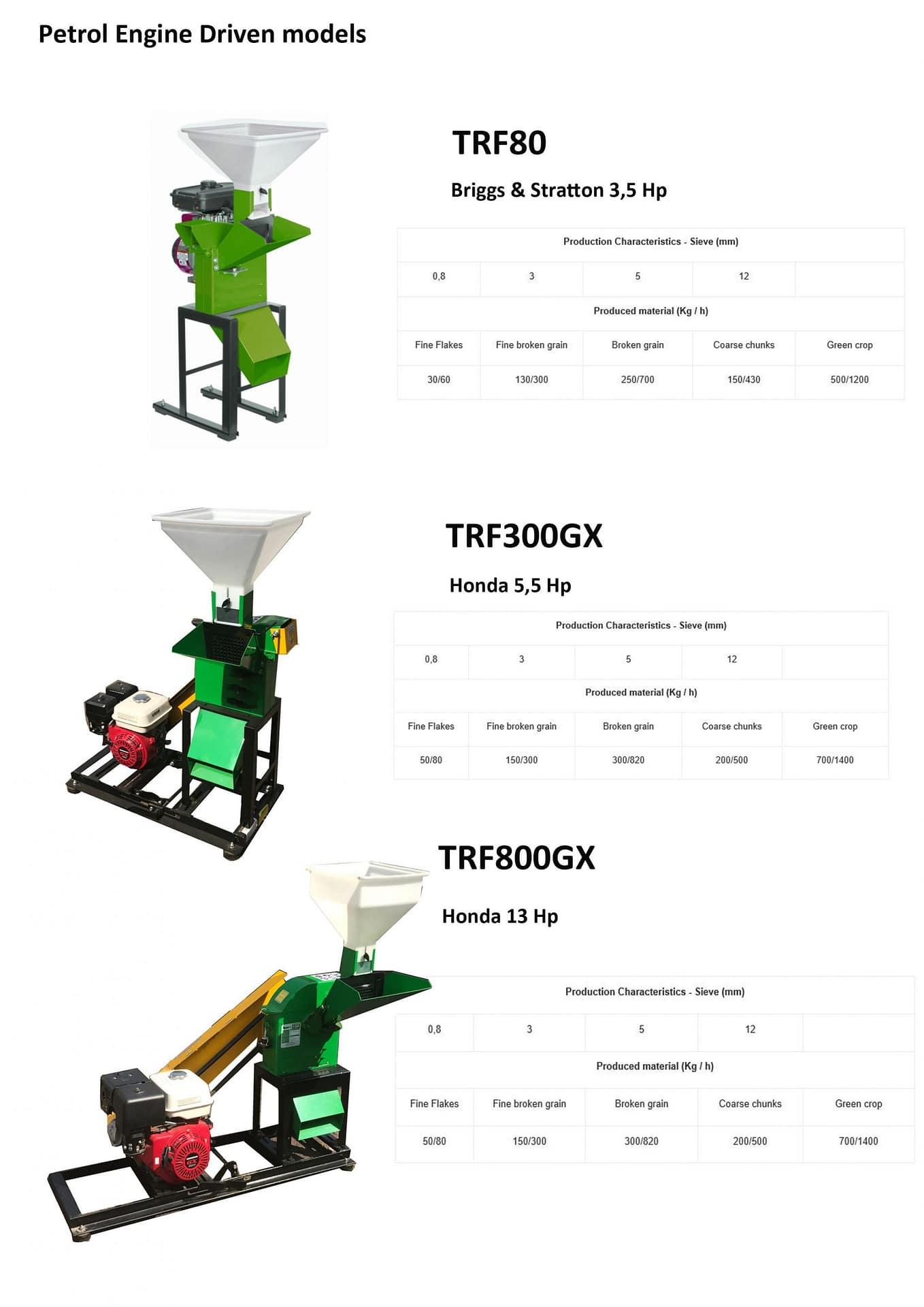

TRF Petrol Hammer Mill, Chipper, Grinder Models

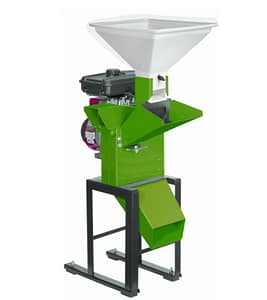

Petrol engine TRF80 Hammermill

TRF80 with 3,5hp Honda petrol engine producing 30 to 1200 kg/hour Max diameter when chipping 15mm

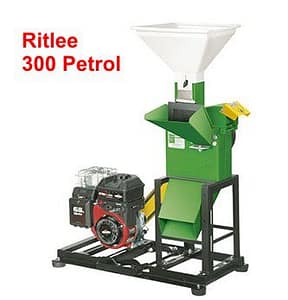

Petrol engine TRF300 Hammermill

TRF300 with 5,5hp Honda petrol engine producing 50 to 1400 kg/hour Max diameter when chipping 20mm

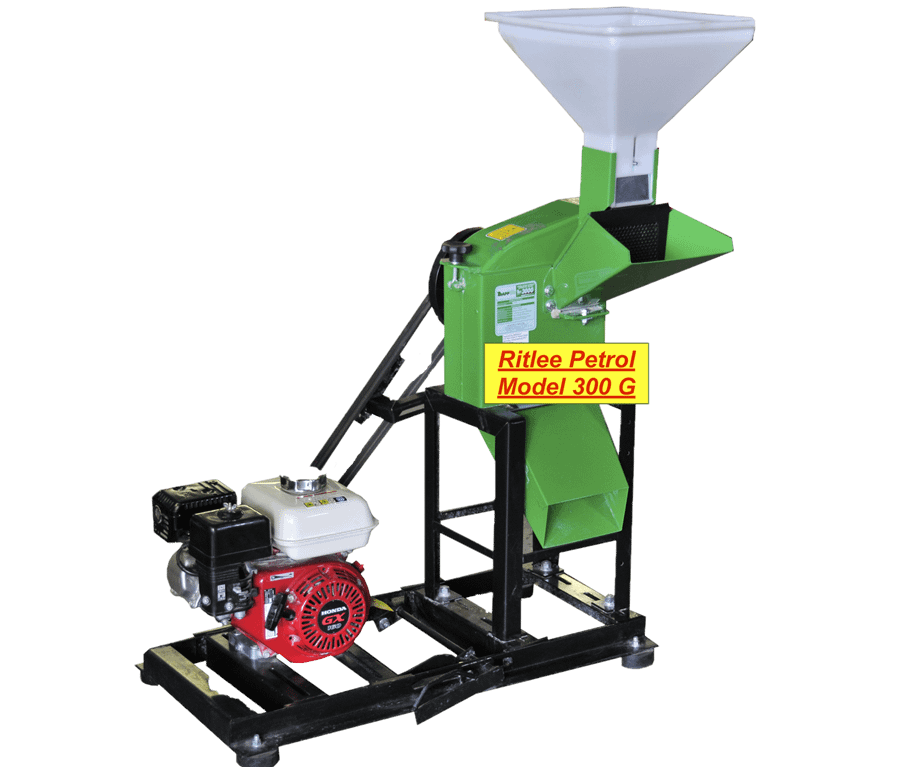

Fitted with Petrol Honda engine TRF300G Hammermill

TRF300 with 5,5hp Briggs petrol engine producing 50 to 1400 kg/hour Max diameter when chipping 20mm

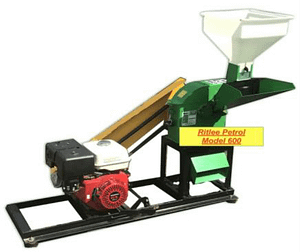

Petrol engine TRF600 Hammermill

TRF600 with 13hp Honda petrol engine producing 50 to 1400 kg/hour Max diameter when chipping 30mm

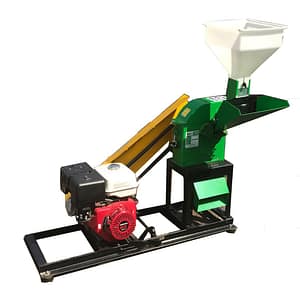

Petrol engine TRF800 Hammermill

TRF800 with 13hp Honda petrol engine producing 50 to 1400 kg/hour Max diameter when chipping 35mm

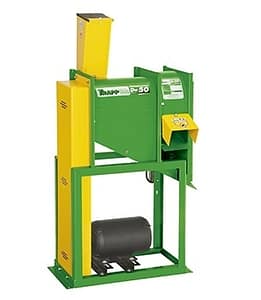

Corn Thresher - Processes 300kg Per Hour

Corn Thresher – Processes 300kg Per Hour

TRF Technical Specifications

  • Screens: 5 screens supplied with all units
  • Disc: Steel Disc with 2x replaceable chipper blades
  • Hammer: Double sided hammer which is reversible
  • Holder: Easy slide in holder for different screens
  • Housing: Heavy duty steel housing
  • Anvil: Adjustable & replaceable anvil on all models
  • Feed: Hopper & dispenser feed
  • Discharge: Drop discharge

TRF Hammermill Screens

TRF Videos

Additional Information

News & Information

Chipper Drum
By: Marc Custers

Updating Ritlee YouTube videos-posted progressively!

As we update our videos for YouTube, i will publish them as a Ritlee post as well. Hopefully we are getting our story across…

Read More

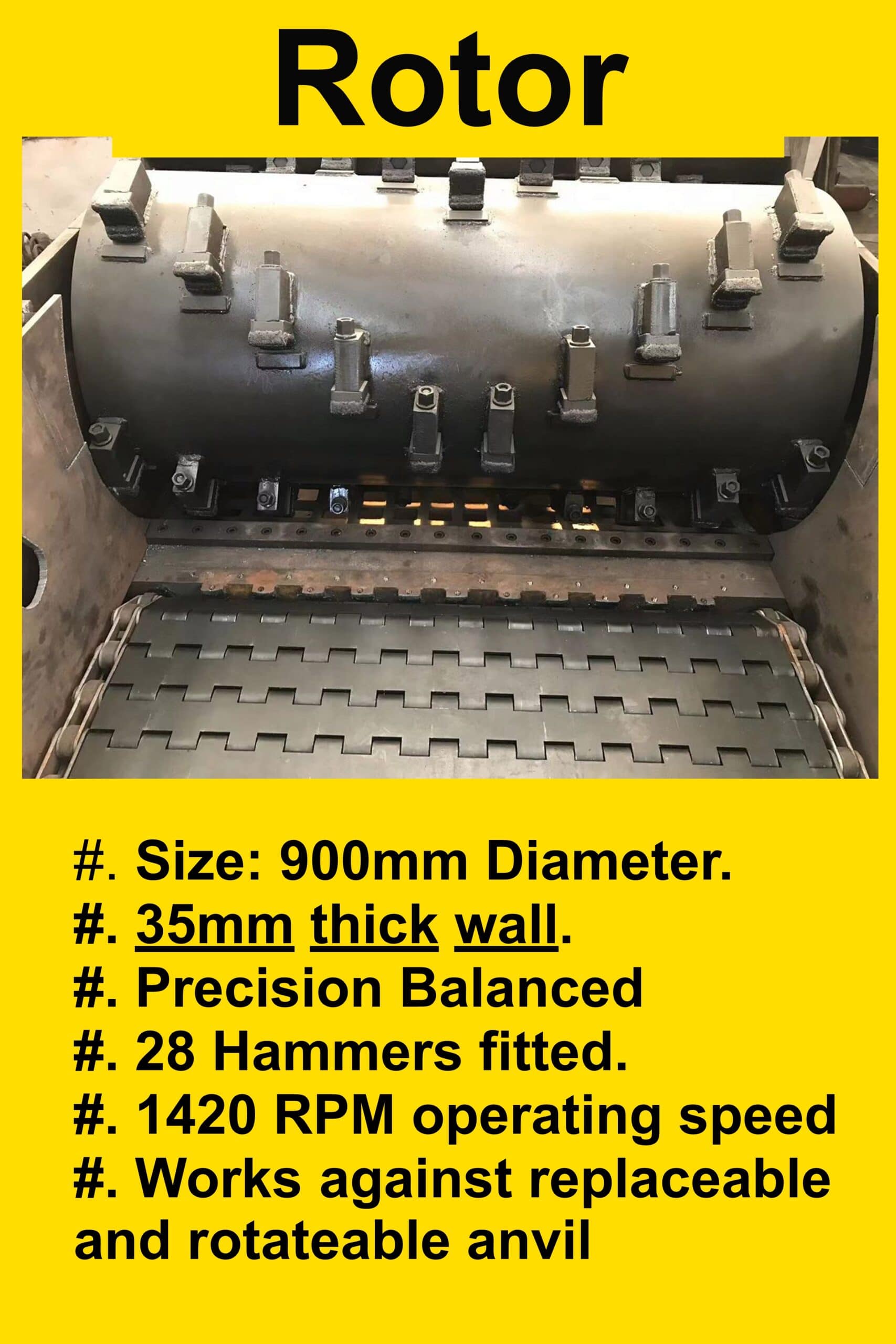

Explanation of 35mm thick walled Rotor
By: Marc Custers

Horizontal Grinder 20 to 25 Tons per hour import

New to the Ritlee range: Horizontal Grinder with all features and benefits and which is totally competitive with most popular brands on the world…

Read More

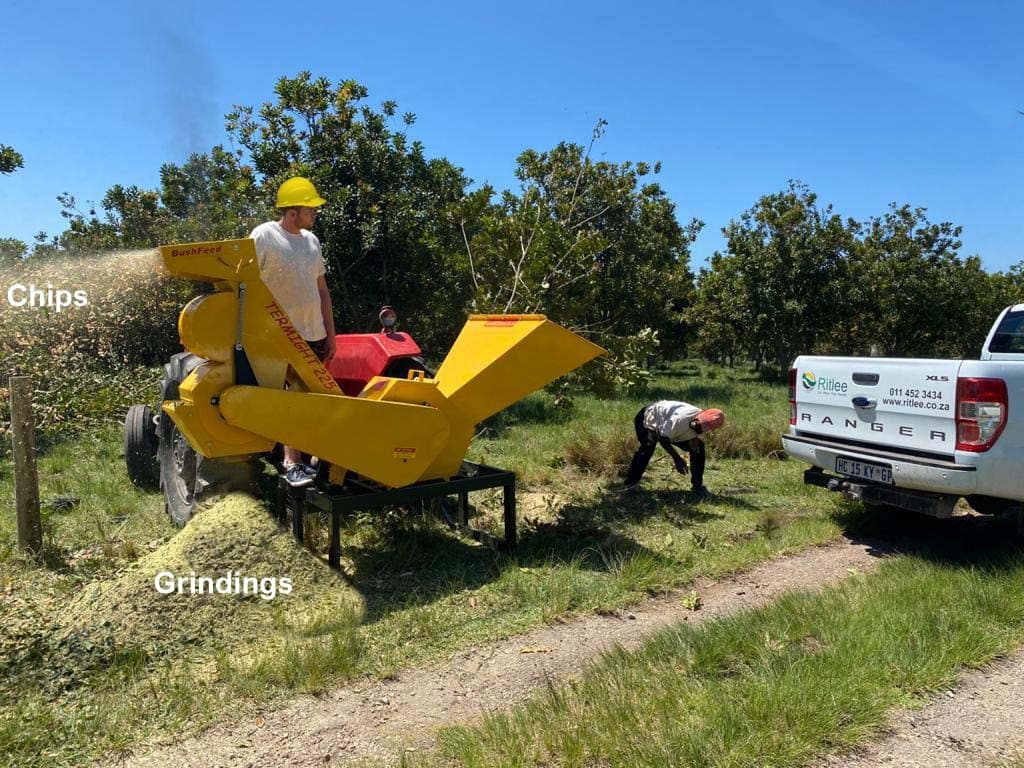

Ritlee Chipper Grinder used for processing bush feed
By: Marc Custers

Climate change and how Ritlee is trying to assist!

Drought, floods, locusts… Ensuring availability of livestock feed is becoming more difficult for farmers due to Climate Change. We have the solution with our…

Read More

Product Pamphlets

GENERAL RITLEE HAMMER MILL PAMPHLET DOWNLOAD
RITLEE HAMMER MILL ELECTRIC RANGE PAMPHLET DOWNLOAD
RITLEE HAMMER MILL PETROL RANGE PAMPHLET DOWNLOAD

Download - Free arrows iconsSummary All we do 2023 –For Hand out and attachment

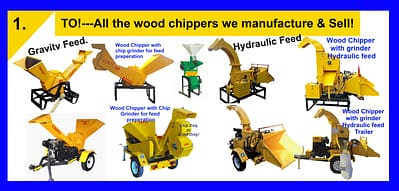

Back to All wood chippers category page!
