Hydraulic Arm Reach Mower - 800mm Head, 3165mm Reach - Model AM 80
Ritlee manufacture and supply a wide range of Agricultural Equipment and Machinery specifically suited to the Southern African climate and agricultural needs. All our products undergo rigorous testing and research to ensure they meet the requirements needed. Visit our YouTube Channel for a full range of Video Demonstrations on our Product Range.
Hydraulic Arm Reach Mower with 800mm Head
- Model AM 80 – Max reach of 3165mm
- A reasonably priced arm mower which can also be kitted with a sickle bar head for those around the farm jobs!
Click to add this item to cart.
Product Description
Hydraulic Arm Reach Mower with 800mm Head
AM 80 Hydraulic Arm Reach Mower with 800mm head and a max length of 3165mm. The Mower has flail blades, heavy duty, in a floating head. This Mower can also be kitted with a Sickle Bar Head for those jobs around the farm.

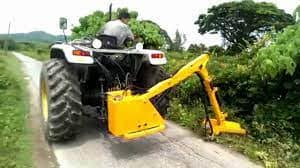

Arm Reach mower rear tractor mounted
Flail head with H/D hocky stick blades
Can be fitted with sickle bar head as well

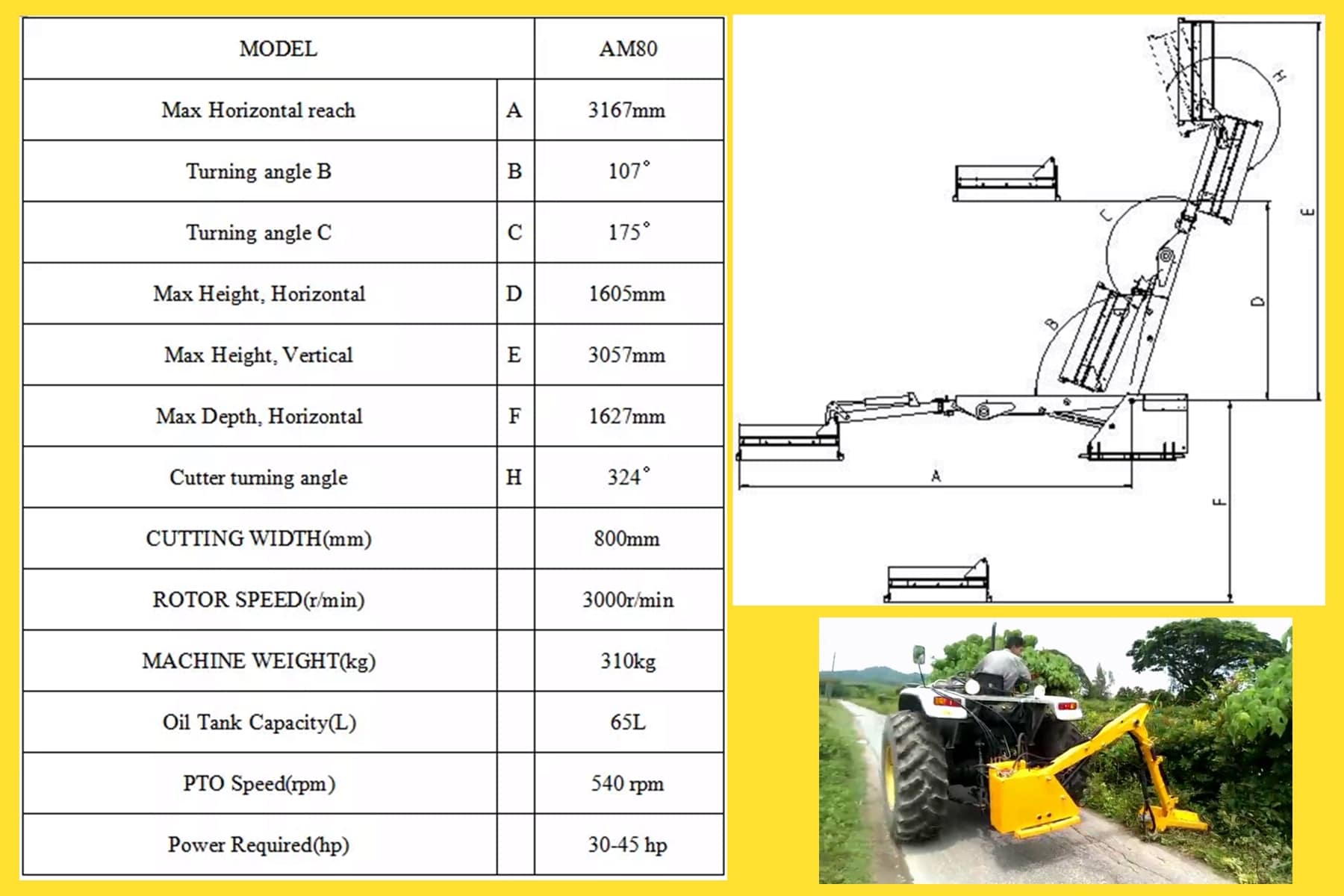

Hydraulic Arm Reach Mower Specifications:
- Controls: Mounted next to tractor operator
- Hydraulics: Has own on board 65 litre tank
- Mounting of unit Unit will only work on Right of tractor
- Horizontal reach: Max 3167mm
- Height in Horizontal: Max 1605mm
- Depth Horizintal: Max 1627mm
- Height Vertical: Max 3057mm
- Sutter turning angle 324 Degrees
- Cutter Width: 800mm
- Rotor Speed 3,000 rpm
- Cutter drive: Hydraulic
- Machine Weight: 310Kg
- Oil Tank Capacity: 65 Litre
- PTO Speed: 540rpm
- Tractor power required: 30 to 45hp
- Turning Angle when horizontal 107 Deg
- Turning angle when Vertica
