Trommel Screen - Built to Order

Ritlee manufacture and supply a wide range of Agricultural Equipment and Machinery specifically suited to the Southern African climate and agricultural needs. All our products undergo rigorous testing and research to ensure they meet the requirements needed.
Visit our YouTube Channel for a full range of Video Demonstrations on our Product Range.

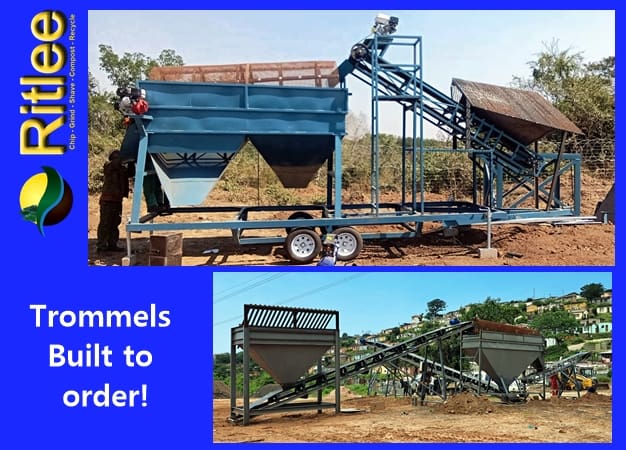

2x different Trommel setups All Built to order

Ritlee Conveyer Belts and Trommel Screens can be built to order with standard specifications or custom specifications to suit customers specialized needs.
WE DO HAVE A BASIC PRICE LIST FOR YOUR INFO TO SEE IF OUR Conveyer belt or TROMMEL WILL FALL WITHIN YOUR PLANNED BUDGET.

  • Ritlee can quote on basic trommels, trommel screens with washers, trommels with stainlees steel mesh if required.
  • We can help with feed conveyers with loading trough as well as discharge conveyers.
  • Please give us a shout if you are wanting pricing at any time!
Click to add this item to cart.

Product Description


Ritlee Trommel Screens

Various tommels available from hand crank to electric drive.

Hand Crank, 220 volt or 380 volt: – You Choose

Ritlee Trommel screens 540mm diameter x 1,7 meter long Or 1,9 meter long with 8mm screen

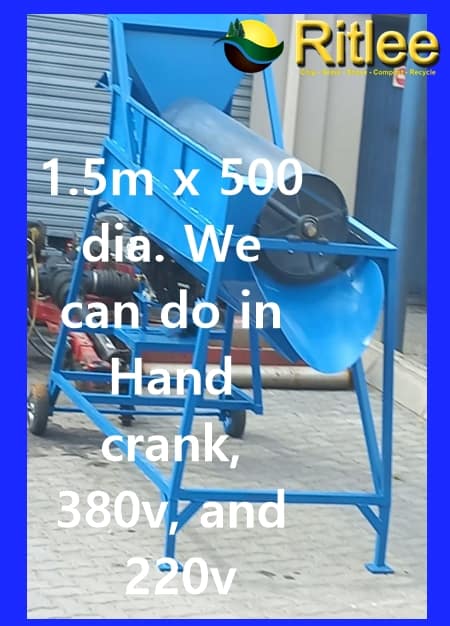

Wheelbarrow type trommel 1,500 x 500 cm

Wheelbarrow type trommel 1,500 x 500 cm

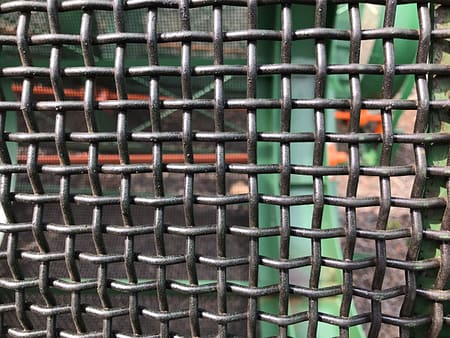

Typical steel mesh used 8, 10, 14, 18 mm

Typical steel mesh used 8, 10, 14, 18 mm

Electric drive single phase and 3 phase:

Trommel in frame with overs discharge and central belly drop!

Trommel in frame with overs discharge and central belly drop!

Larger units which have been built:

2x different Trommel setups All Built to order

2x different Trommel setups All Built to order

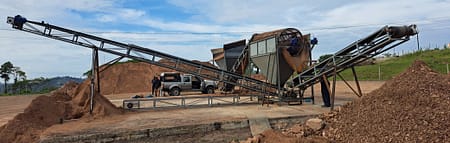

Complete setup built to customer requirements and our planning and design

Complete setup built to customer requirements and our planning and design

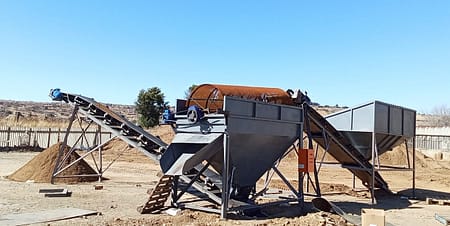

Complete trommel setup this for Sand.

Complete trommel setup this for Sand

Please note the H/Duty gearboxes and bearings used!

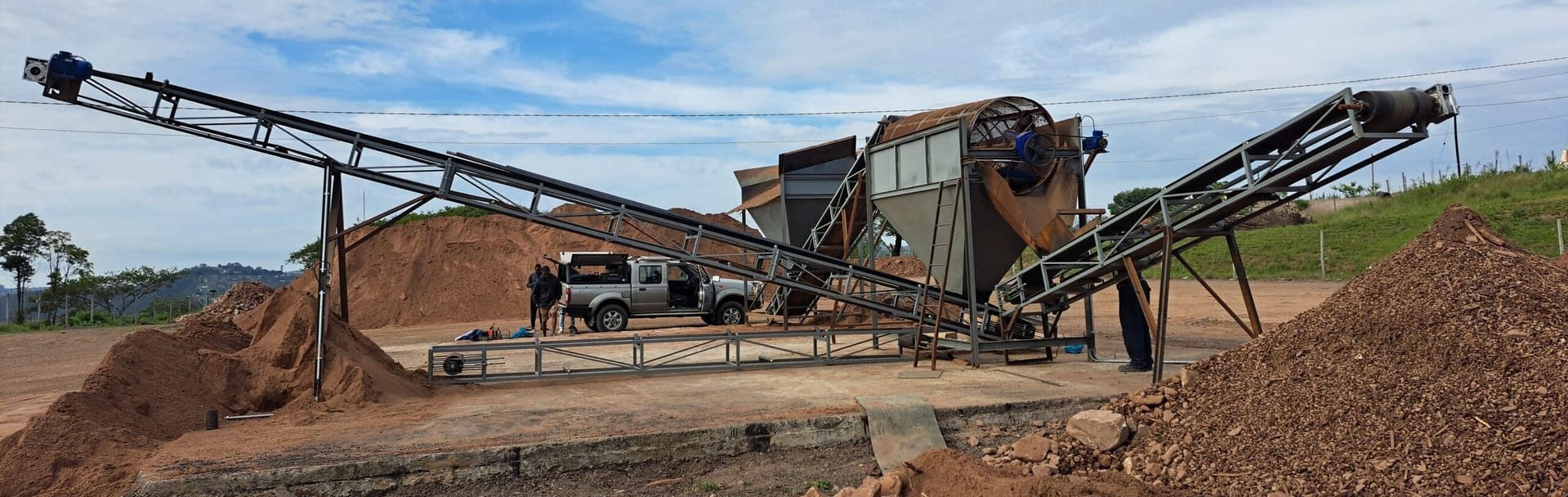

Complete setup built to customer requirements and our planning and design

Complete setup built to customer requirements and our planning and design

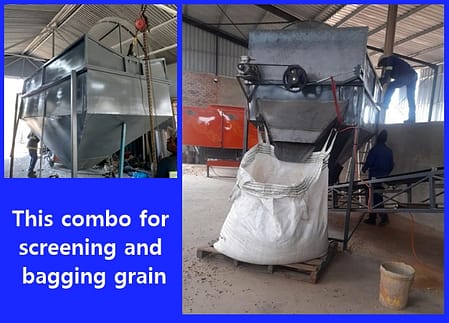

Trommel to bagger on large scale Example feed

Trommel to bagger on large scale Example feed


We can also go mobile

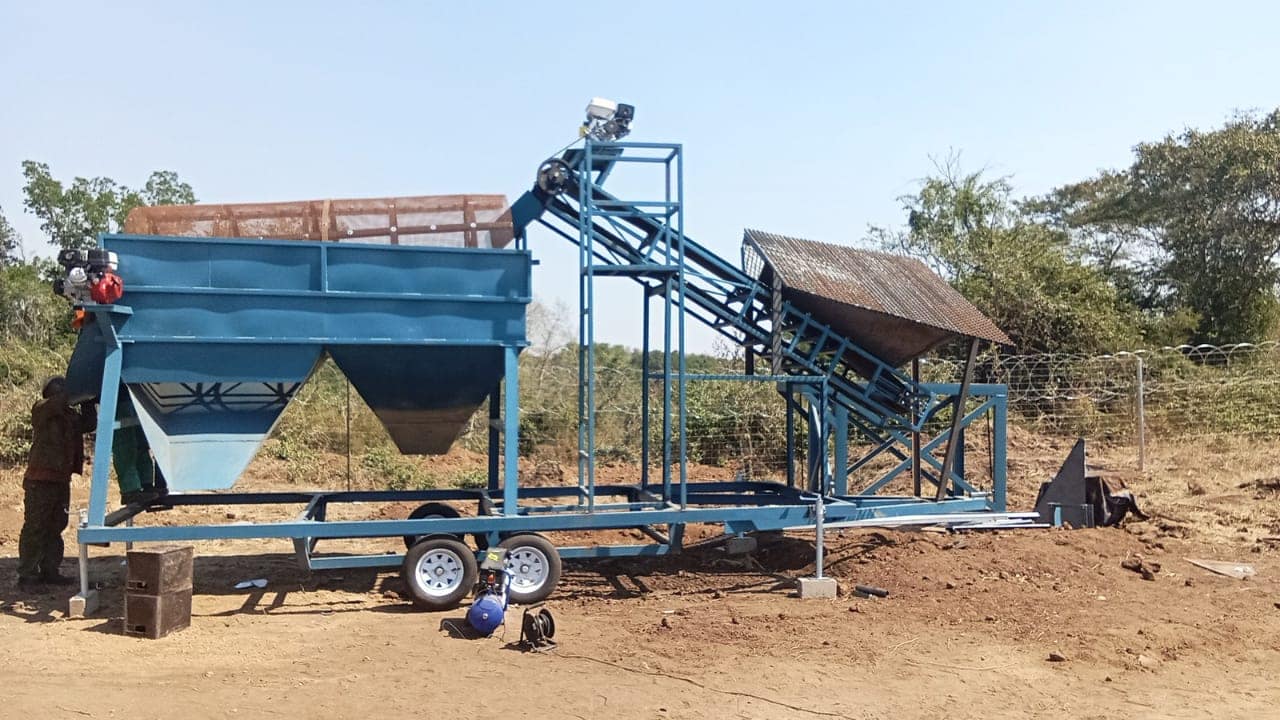

Trommel Mobile River sand sifting unit!

Trommel Mobile River sand sifting unit!

  • Can fit conveyer stacker discharge for sifted sand.
  • Conveyer swivel with pin lock for discharge of overs.

This one for cleaning and bagging feed! (Still in building process) — This for Pig Farm

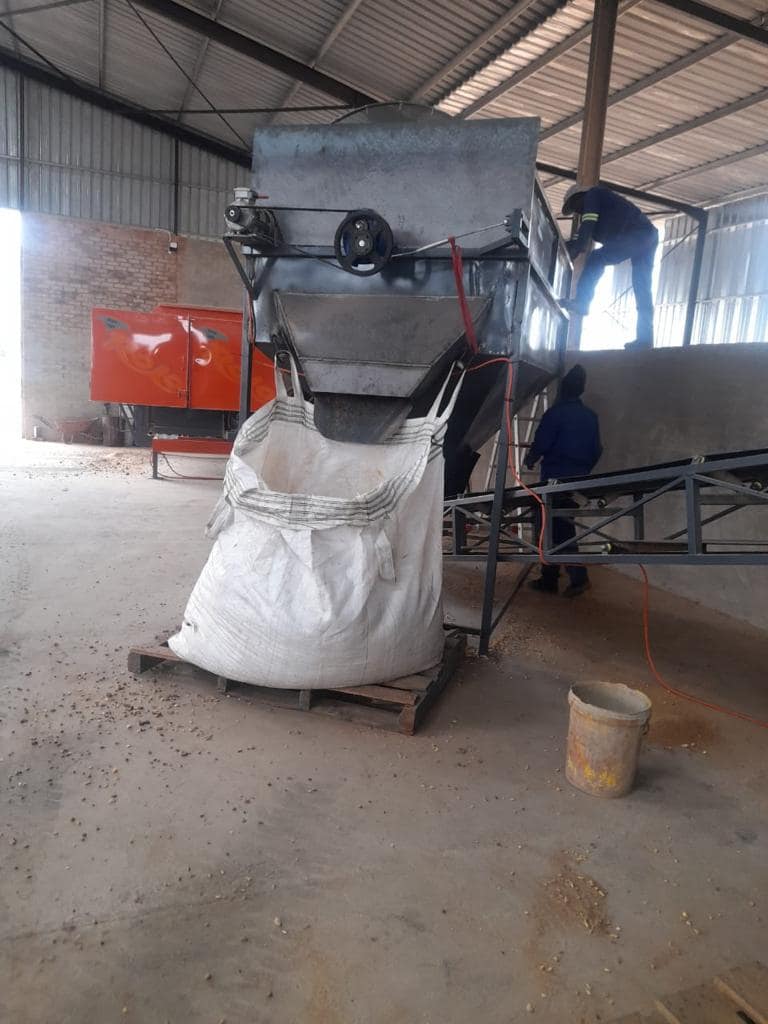

Trommel inside bin with bagging discharge and overs discharge onto belt

Trommel inside bin with bagging discharge and overs discharge onto belt

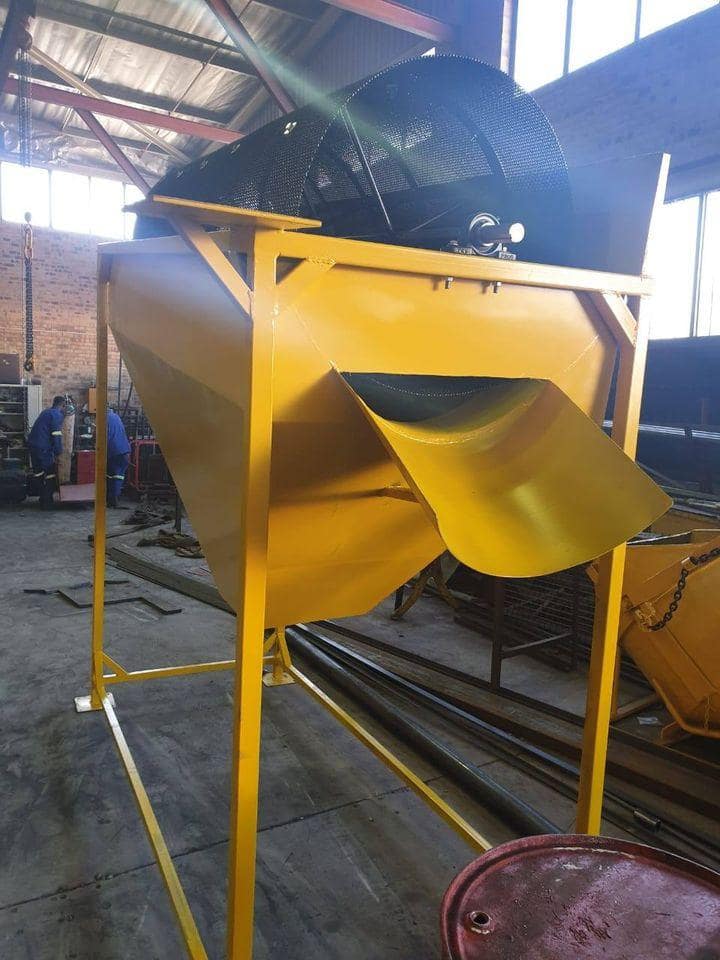

Trommel in frame with overs discharge and central belly drop!

Trommel in frame with overs discharge and central belly drop!

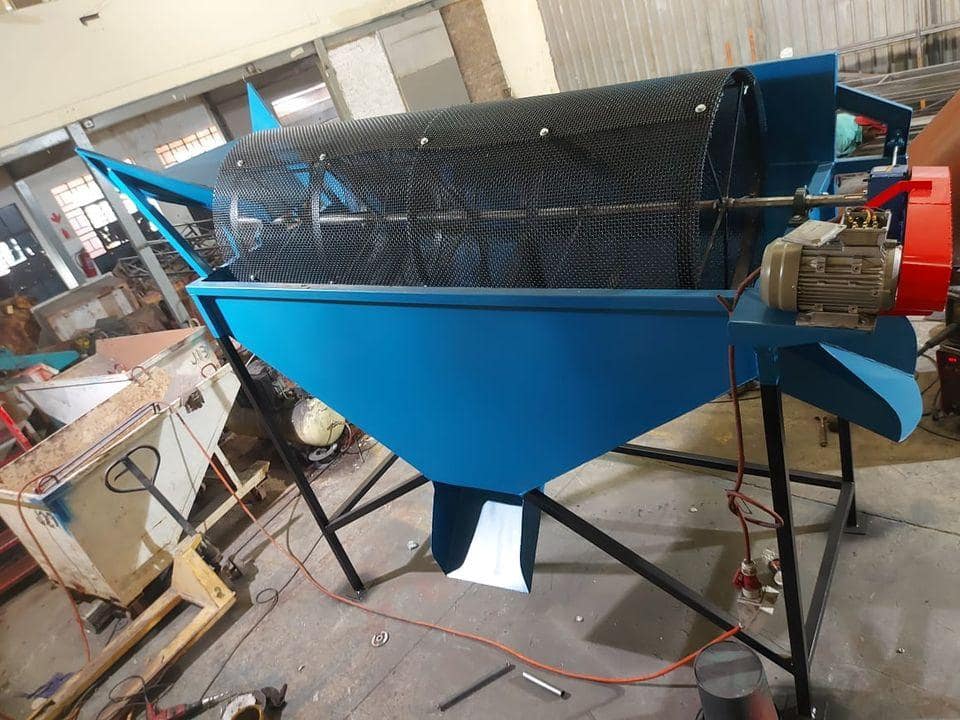

Trommel built for specific needs from customer

Trommel built for specific needs from customer

Average sizes built:

  • 500 x 1000mm 8 mm mesh
  • 800 x 1500mm 8mm mesh
  • 1000 x 2000mm 8mm mesh
  • 2000 x 2500mm 8 mm mesh
  • 1200 x 3000mm 8 mm mesh

Screening plant complete consists of at a sell of just on -To be quoted!

1x 1200 x 2500 trommel with 8 or 10mm mesh

1x infeed conveyer 450 x 10 meter

1x Outfeed conveyer 450 x 10 meter

1x conveyer for overs

1x 2cu meter infeed loading trough!

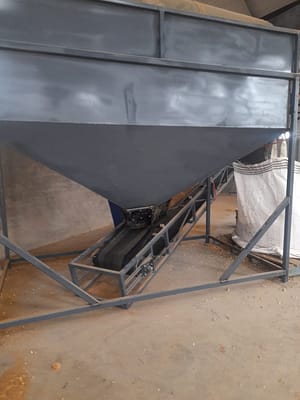

Feed handling trommel with discharge belt

Feed handling trommel with discharge belt

Action video



[/su_column][/su_row]

To Various conveyers!

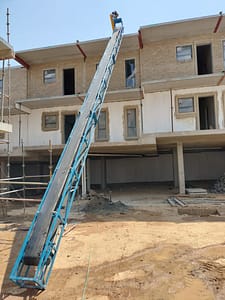

Built to Move Your Business Forward From light-duty handling to heavy industrial applications, we design and build conveyor belt systems that keep materials moving efficiently, reliably, and safely. Every conveyor we manufacture is engineered to suit your process, your space, and your workload.
