Sawmill 660 Throat RSA Manufactured for Africa.

Ritlee manufacture and supply a wide range of Agricultural Equipment and Machinery specifically suited to the Southern African climate and agricultural needs. All our products undergo rigorous testing and research to ensure they meet the requirements needed.

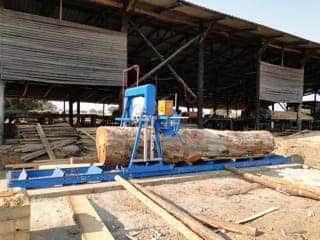

Sawmill 660 from Ritlee Note secure and Sturdy cutter head construction for mounting and carry of blade

Ritlee sawmill 660 with either Electric 11kw or Diesel or Petrol power 15 to 23hp.

  • Log Diameter capacity: 750mm
  • Throat size: 660mm
  • Sawmill frame measurements: 192 x 216 x 210cm
  • Weight: 595kg

Lunber Mill, Portable Mill, Stationery Mill, Saw Mill, cutting mill, mill are all names used when wanting info on Sawmills on the WWW

Click to add this item to cart.

Product Description

Ritlee Model 660 Sawmill :

Sawmill 660 RSA Made -Developed for planking trees from all areas of Africa.

Exceptionally robust construction!

Developed for cutting in field logs into manageable and marketable lumber.

Supplied with totally unique deflector plate to keep guide rollers and trolly rails clean and free from sawdust etc which totally destroys the rollers.

Feed Bed: 7.2M Modular bed (option to buy extra beds) with robust log clampingРOptional Extra railsР2 meter lengths   Adjustable guide arm that means you can set the track rollers as far apart as you need them.  Track roller holder design makes it easy to set the blade parallel and deflector plate keeps dirt and debris away from rollers

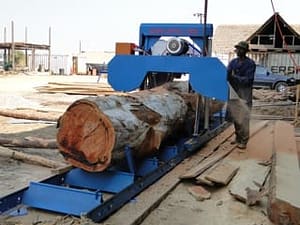

Sawmill 660 RSA Made In Action cutting the biggest log!

Sawmill 660 RSA Made In Action cutting the biggest log!

# Manual Push Feed with 25L Water Tank to keep Guides & Rollers clean and debris free. (Rotating)

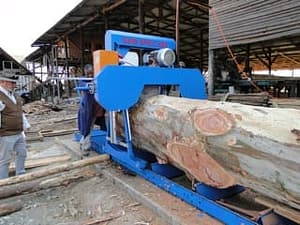

Sawmill 660 RSA Made. Log securely loaded on saw bed which is 7,2 meter long!

Sawmill 660 RSA Made. Log securely loaded on saw bed which is 7,2 meter long!

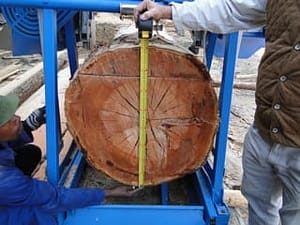

Sawmill 750mm diameter log loaded ready for cutting

Sawmill 750mm diameter log loaded ready for cutting

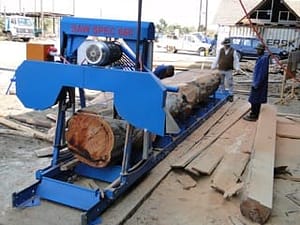

Sawmill Locking Log for cutting securely locked on carrier bed

Sawmill Locking Log for cutting securely locked on carrier bed

# Feed Bed: 7.2M Modular bed (option to buy extra beds) with robust log clampingРOptional Extra railsР2 meter lengths   Adjustable guide arm that means you can set the track rollers as far apart as you need them.  Track roller holder design makes it easy to set the blade parallel and deflector plate keeps dirt and debris away from rollers

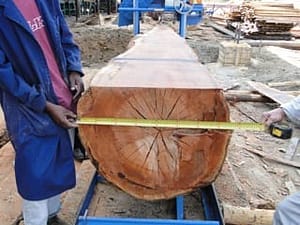

Sawmill 750mm log mounted on saw bed

Sawmill 750mm log mounted on saw bed

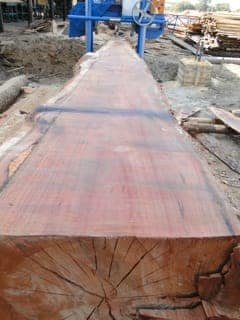

Sawmill Closer view of cut of 750mm log!

Sawmill Closer view of cut of 750mm log!

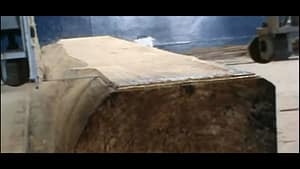

Precise cutting of log -- here 4mm thick plank!

Precise cutting of log — here 4mm thick plank!


Specs:

  • Super Frame: Heavy & robust 150mm x 80mm backbone.
  • Sawhead Carrier: Strong Four Post A-Frame Construction
  • Turning wheel for precision setting of cutter blade!
  • Note lubricating water container tank

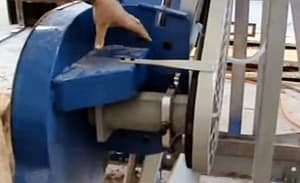

Backbone 150 x 80mm Really heavy duty

Backbone 150 x 80mm Really heavy duty

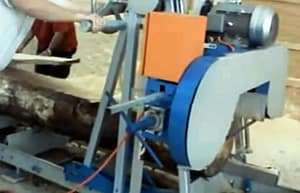

Moving cutter saw trolly!

Cutter head mounting!

# Sawhead Carrier: Strong Four Post A-Frame Construction

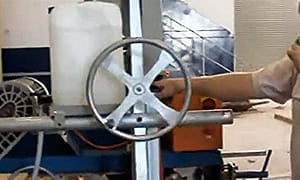

Turning wheel for precise setting-- Note water librication tank

Turning wheel for precise setting– Note water librication tank

# Mechanical Up & Down, Chain Assisted, movement on hardened shafts.

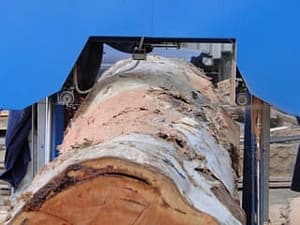

750mm passing through saw housing!

750mm passing through saw housing!

  • Precise setting of sawblade with lock
  • Easy and true tensioning of pully drive for sawblade
  • Easy access to drive pullies!

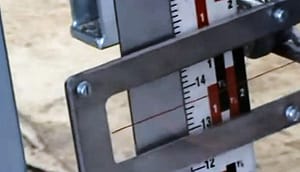

Easy and true Precise calibration for plank sizing

Easy and true Precise calibration for plank sizing

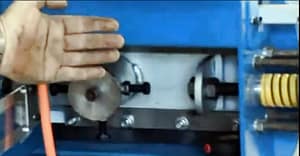

Precise setting of blade saw wheels as well as tensioning of blade with spring loaded controller!

Precise setting of blade saw wheels as well as tensioning of blade with spring loaded controller!

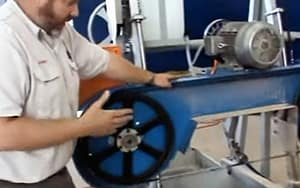

Easy access to blade carrier and drive pully

Easy access to blade carrier and drive pully

#¬† Standard blade length ‚Äď 4.000mm Long x 32/35mm Wide x 22mm Pitch Band Saw Blades

# Interchangeable Band Saw Wheels (482mm Dia.) with Steel Hubs and Goodyear B57 V-Belts that is readily available

#Drive belts are on the outside to prevent saw dust from damaging them

# All nuts and bolts are H/T metric (easily available)

# No Complicated Electronics ‚Äď Simple Electric Panel (On / Off Switch) with Amperage Meter that can indicate if the blade is getting blunt or the operator is push feeding too fast.


Power fitted:¬†11KW Electric Motor (380V)—Or¬†15.5KW @ 3600Rpm Honda Petrol Motor, GX630 23H/P

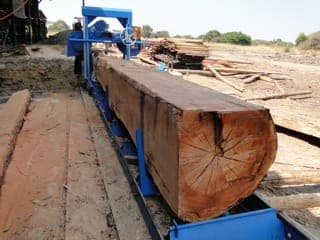

Sawmill Ritlee Cutting a mother of a log!

Sawmill Ritlee Cutting a mother of a log!
