Product Description

Slow Speed Shredder, High Torque Worker

Bulkmatech Cape builds dual-shaft industrial SHREDDERS, ie the BS-Series (core range): BS400, BS600, BS800, BS1000, BS1200, BS1400, BS1600. The model number indicates the nominal internal chamber length in millimetres. Wider (W) and Longer (L) variants exist for special cases, but remain non-standard exceptions.

All BS-Series machines can be supplied as single-drive or dual-drive. We work from proven gearmotors (e.g. 5kW, 7.5kW, 11kW, 15kW, 22kW, 30kW, 45kW and others…), but kW alone is meaningless. Real performance comes from torque at the shaft (Nm), shaft speed (rpm), gearbox ratio, form factor and service factor, matched to the material and duty cycle.

Range -Spread of the different sizes which can be built or are available — Give Ritlee a call!

Our shredders are deliberately overbuilt to last a lifetime, use easily sourced locally available parts and can be repaired quickly in South African conditions. Control is via industrial PLCs with advanced VSDs running our in-house ShredLogix platform, which goes far beyond simple auto reverse to manage torque, protect the drive train and stabilise throughput. Multiple levels of protection and the ability to do easy “tuning up” are built in, including overload protection, conservative service factors, mechanical gear couplers, shaft stack compression systems and easily adjustable control parameters.

Around the shredder we can supply dozens of optional extras and integrations, including step-up platforms, seperator technology, incline feed conveyors, exit conveyors, fully customisable hoppers, stainless steel liners, RoRo mounting frames, discharge chutes, bale or bin interface chutes, vapour extraction interfaces, inert-gas shredding cells, hard-faced cutters, special tooth profiles and a range of sensor and telemetry options.

For lifecycle support we offer ShredderCare, a structured maintenance and service programme with defined inspection, training and upgrade options.

Example configuration and pricing:
BS600MD mkIV (HDPE drums)
Standard BS600 configured with:
• 1 × 15 kW, 35 rpm, 4 100 Nm normal operation, up to 8 000 Nm for short periods. Can shred up to 1.7tons an hour of heavy duty, very thick walled 25L HDPE drums and containers using an aggressive 3-tooth cutter design.

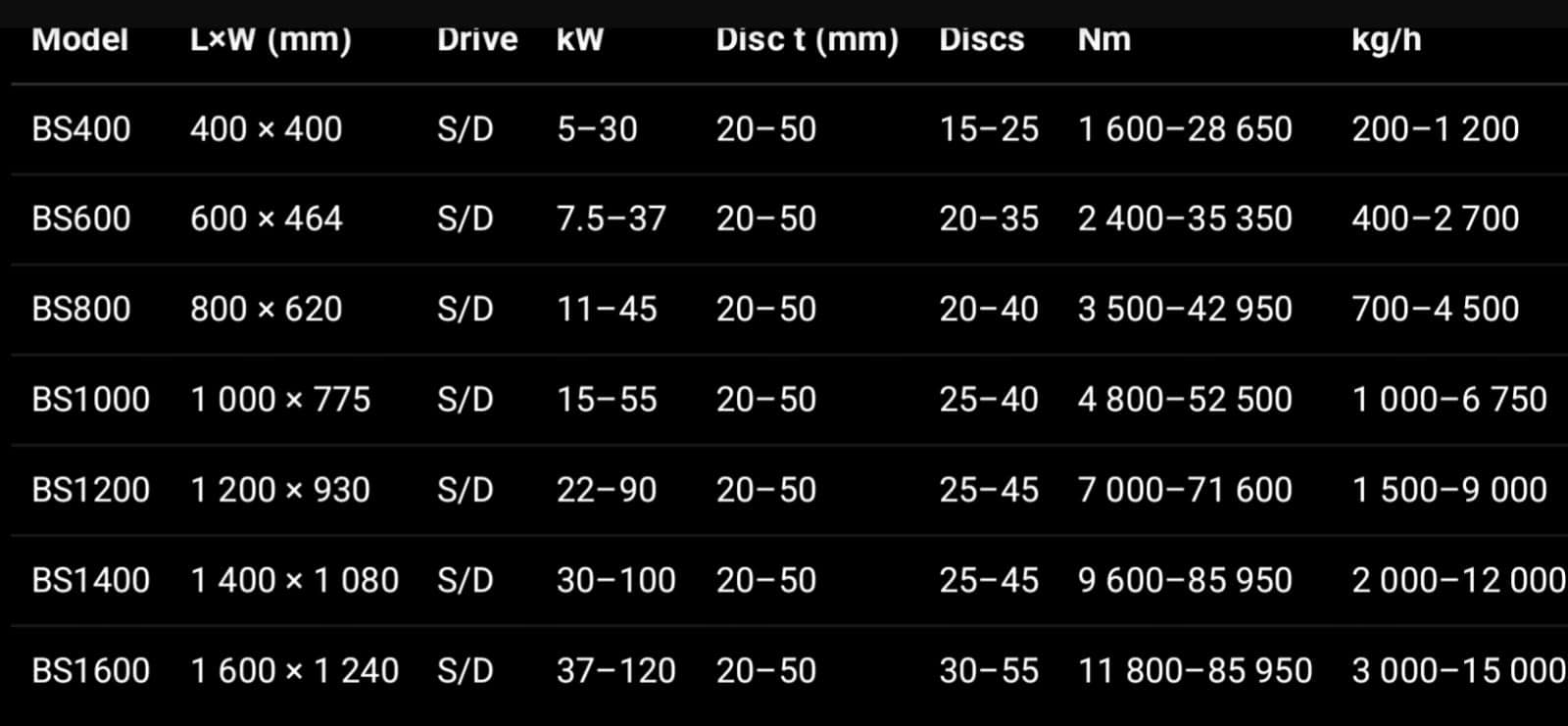

Spec sheet of each model with Phenomenal torque produced with each combo

Compare these gearboxes and motors  They are 2nd to none supplied in SA

Shredders Dual Shaft

Dual Shaft Shredders are purpose-built for volume reduction, product destruction, and product–packaging separation. Featuring variable speed drives, high-torque dual shafts and precision German gearboxes, they deliver extreme torque with low energy consumption, making them ideal for even the toughest materials like HD plastic drums, tyres, wood, rubber, fiberglass, paper, car bumpers and other hard plastics

Equipped with intelligent software for real-time torque monitoring and shaft speed control, and built with hardened special steels for the blades, shafts, and transfer gears, these machines guarantee reliability, performance, and longevity. High-quality sealed bearings, protected by our bearing protection system, minimize maintenance while maximizing durability.

Equipped with intelligent software for real-time torque monitoring, anti-jam protection, and automated control, these shredders deliver smooth, safe, and consistent operation. Built with special hardened steels for the blades, shafts, and transfer gears, high-quality German gearboxes, sealed bearings protected by our bearing protection system, and IE3 Premium Efficiency motors, they provide lower power consumption, long life, and low maintenance in the toughest environments.

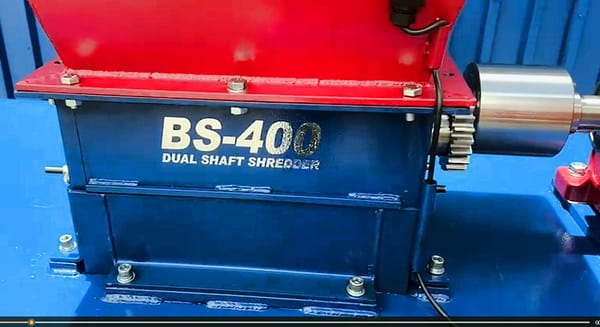

BS 400 fitted with Optional 4kw or 7,5kw electric motor

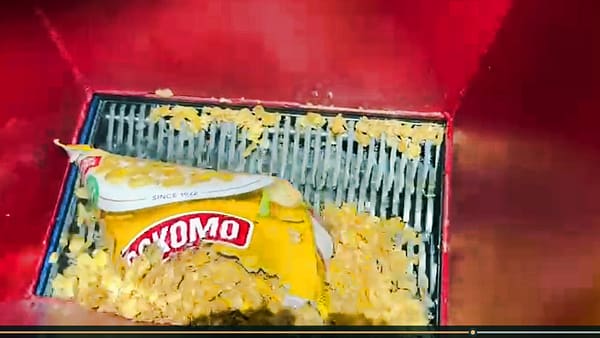

BS 400 used for grinding outdated ceriels, chocolates, cigaretts etc

Grinding Down 300Kg Paper with ease!

Grinding 25 Litre Plastic Drums with absolute ease!

Heavy duty shredders with exceptional power and torque engineered to handle required torque!

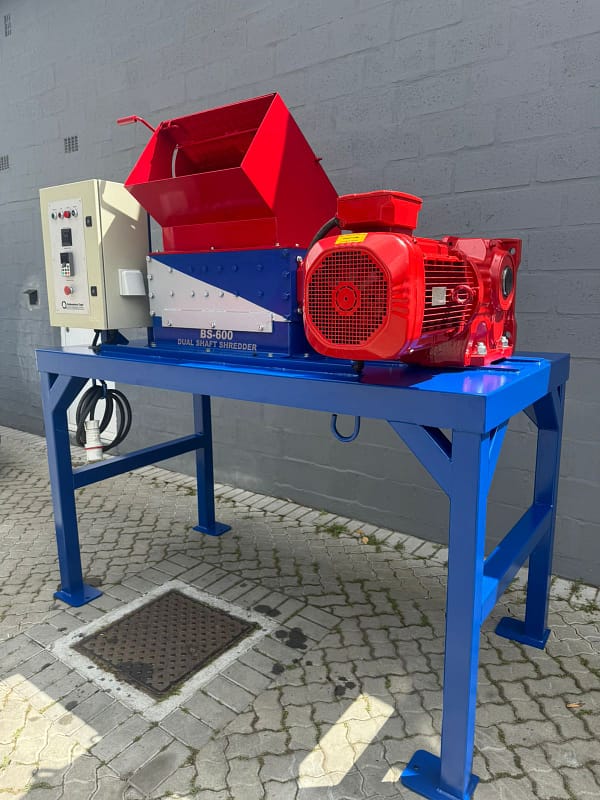

Bs 400 Fitted in 7,5Kw electric motor giving a unbelievable 7000 NM Torque

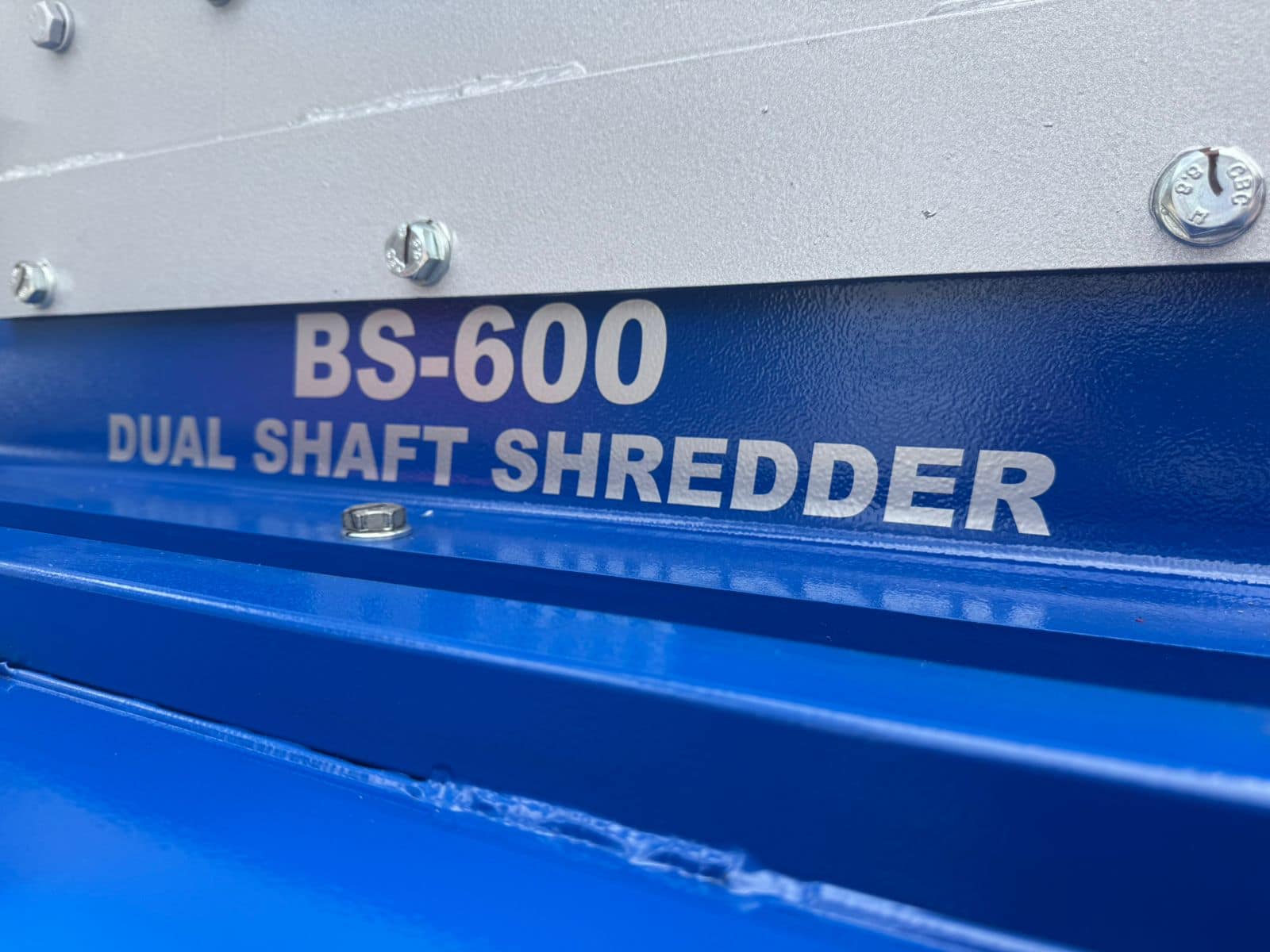

Slow speed grinder Model BS 600 fitted with 7,5 kw

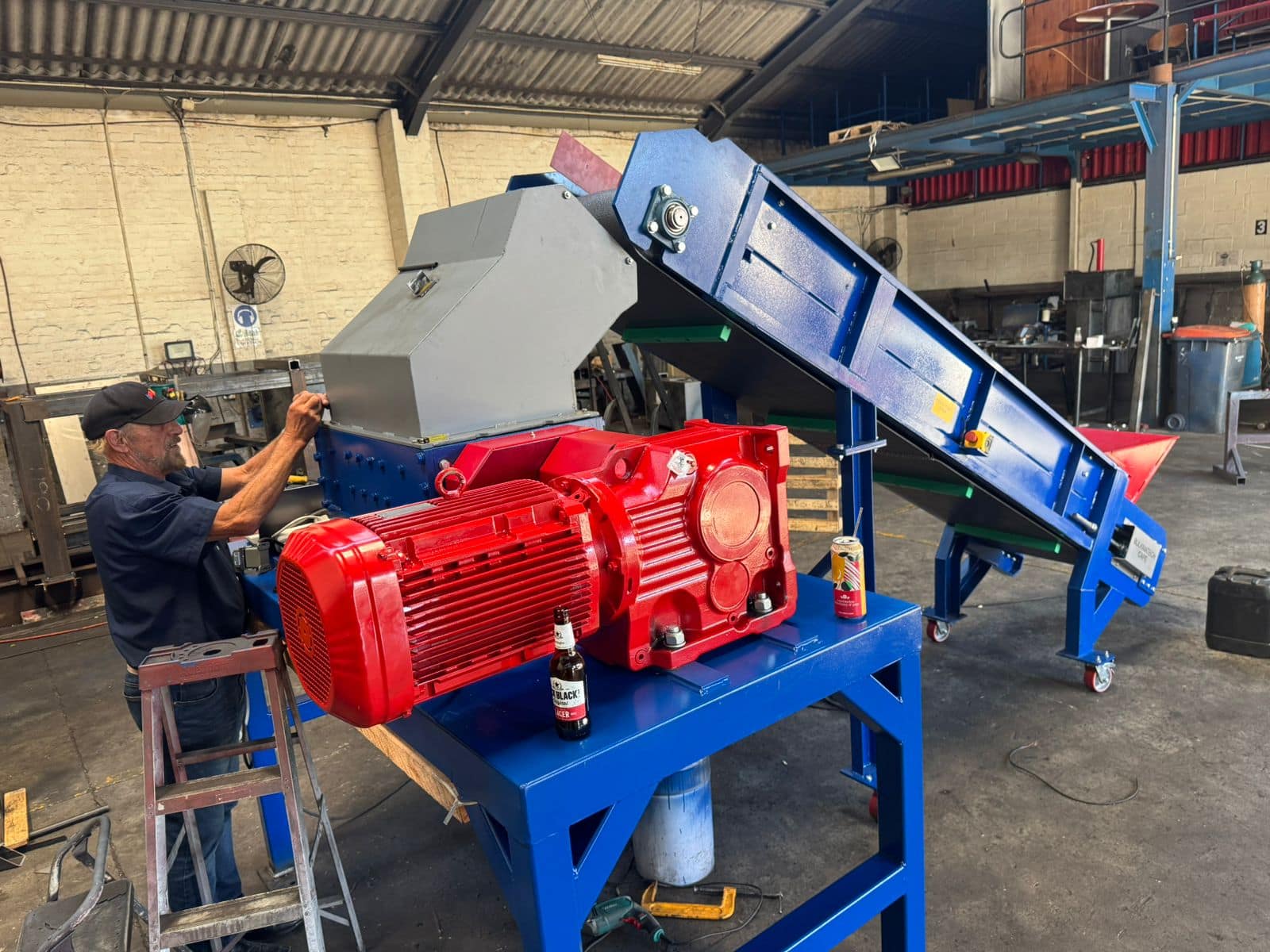

BS 600 Fitted with 15Kw electric

Some Videos:

we can quote on:

1. Blade size options: 10mm, 16mm, 20mm
2. Bulk bag stand with bulk bag platform with steps and safety rail
3. Auto stockpile conveyor system
