Whole Tree Wood Chipper range - Lippel Brazil

Ritlee manufacture and supply a wide range of Agricultural Equipment and Machinery specifically suited to the Southern African climate and agricultural needs. All our products undergo rigorous testing and research to ensure they meet the requirements needed.
Whole tree chipper introductiion picture
Whole Tree Wood Chipper

Hurcules 1400

One of the advantages of the large feeding mouth of the 1400 Hurcules machine is

  • the ease of receiving bulky materials such as trees from citrus orchards with many branches and roots and whole trees from the forest environment.
  • Guarantees efficiency to the process.

Dragon 1200

The Dragon 1200 is the largest truck-mounted wood chipper “chipper truck”  in Brazil. In addition to mounting on a truck
  • Dragon can be mounted on the Forwarder chassis.
  • Towable wheels / trailer
  • Self-propelled tracks.
  • Another interesting option is to incorporate a crane into the chipper itself, making the whole set a 100% autonomous chipping unit.

Optional:

The material traction system can be
  • With a roller for traction.
  • Ascending conveyor–optionally can be ordered with lateral traction rollers in a vertical position that help to further traction the materials into the chipper.
  • The horizontal feed opening is 1200 mm.
Click to add this item to cart.

Product Description

Whole Tree Wood Chipper and if required grinder-

Ideal for our South Africa and Africa for –Citrus, Nuts, Namibian bush and trees, sawmill waste chipping for Bio Fuel, Landfill organic management and reduction etc

Features
• Largest truck-mountable wood chippers and grinders
• Various assembly options: Truck, Forwarder, Towable and self-propelled
• Design allows the incorporation of crane for self-feeding
• Horizontal feed opening: 1400 to 525mm
***Optional: side traction rollers and ascending traction belt
• Steel feeding mat
• Extraction of material by belt at various heights
• Self-tensioning clutch (maintains the correct tension on the belts)
• Oversized Radiators and Programmable Reversible Helix
• Interchangeable sieves (no need to disassemble part of the machine)
• Remote control with the main functions of the machine
• Automatic feed and throttle control
Please note: If size you require not covered on this page please let me know!
Thanks Marc 27 844534499

Video of the range of whole tree chippers/grinders made by Lippel Brazil

Whole tree chipper pamphlet download

Whole tree chipper pamphlet download

Starting with largest unit

Hercules 1400 Rodo-forestry chipper

The largest Brazilian Forest Chipper capable of driving on highways.

Has a useful width of 1.4 m, huge traction roller, power of more than 600 CV.

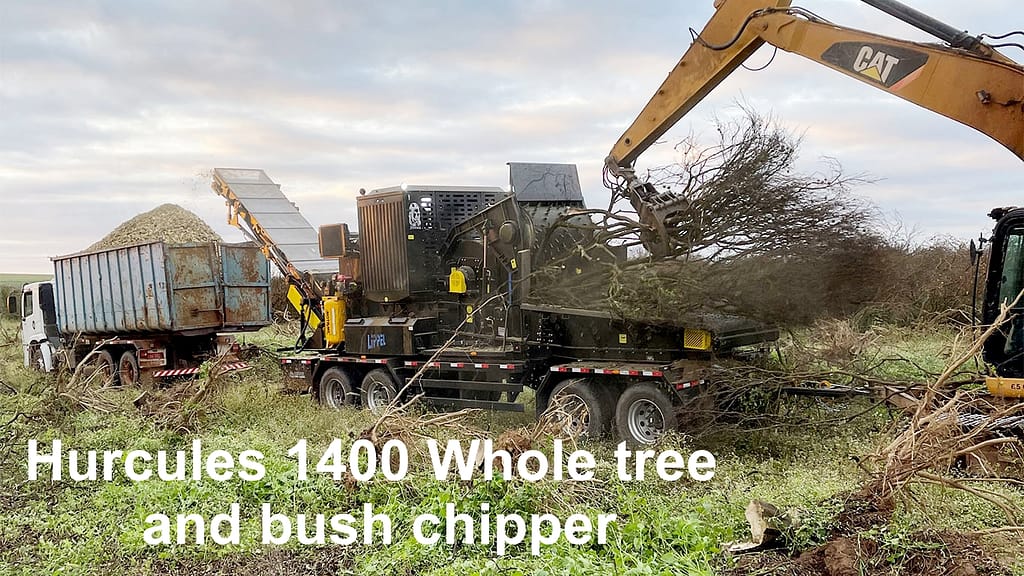

1400 whole tree chipper and / or grinder with label

1400 whole tree chipper and / or grinder with label

The chipper is mounted on a 4-axle air brake semi-trailer chassis with ABS. Specially developed for the machine and approved by Detran for road transport without the need for a special license. We pay special attention to the height, which does not exceed 4.2 m, to reduce the center of mass and allow the cables to pass freely.

One of the advantages of the large feeding mouth of the machine is the ease of receiving bulky materials such as trees from orange orchards with many branches and roots and whole trees from the forest environment, guaranteeing efficiency to the process.

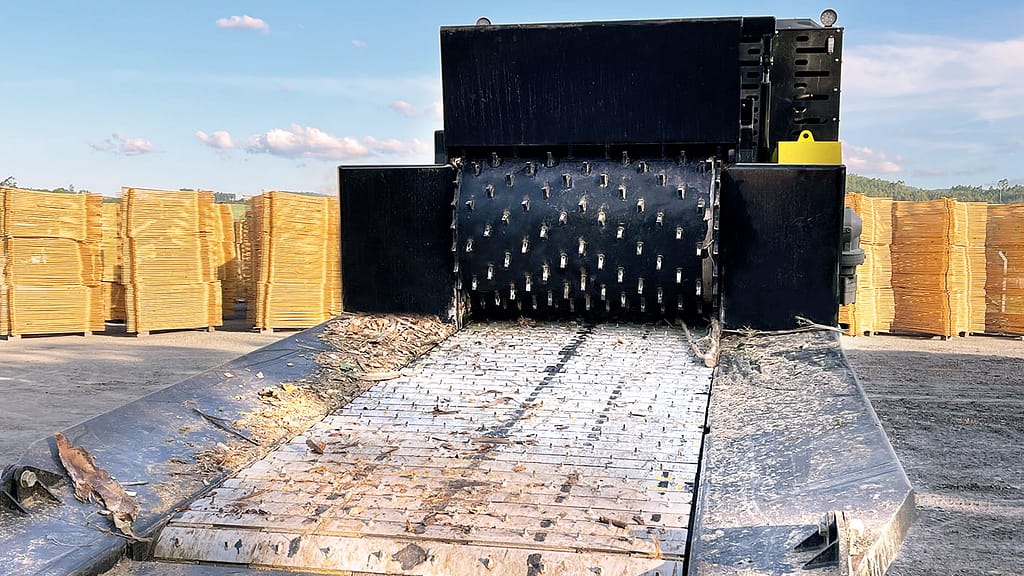

Illustrating live floor made of steel conveyer with grab spikes

Illustrating live floor made of steel conveyer with grab spikes

Total Specs:

Model: HERCULES 1400
  • Transport dimensions (WxLxH): 2725 x 11347 x 4217 mm
  • Working dimensions (WxLxH): 2725 x 14828 x 5000 mm and articulating 80 ͦ + 80 ͦ
  • Cutting Opening (WxH): 1400 x 1000 mm
  • Rotor diameter: 1000mm
  • Power: 611 HP
  • Production*: 300m³/h
  • Weight: 30,000 Kg

Optionally, the rotor has the ability to work with more and fewer knives, thus increasing the capacity of the larger diameter log chipper without forcing or braking the machine.

The extraction of the shavings is carried out by means of a tilting and articulated conveyor belt of 80 ͦ that raises the material up to a height of 5 meters, facilitating the loading in any type of truck.

Hercules: The versatility of scrolling with ample processing power.

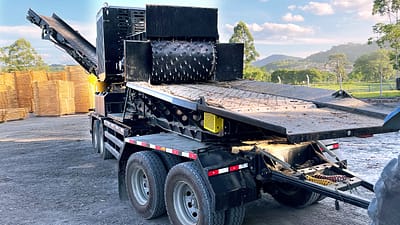

1400 showing left and right swing of discharge belt

1400 showing left and right swing of discharge belt

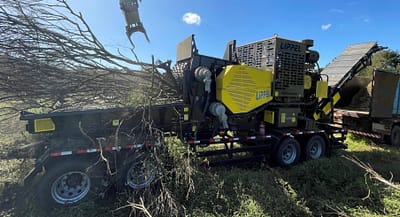

1400 Chipper/Grinder for Whole tree chipping and grinding!

1400 Chipper/Grinder for Whole tree chipping and grinding!

Wood chips produced by 1400 with drum chipper

Wood chips produced by 1400 with drum chipper

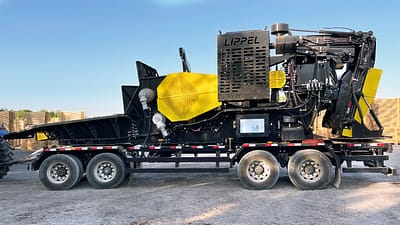

1400 with folded feed tray for Transport

1400 with folded feed tray for Transport

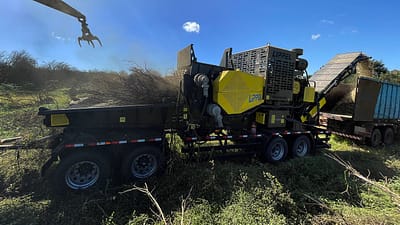

1400 side view

1400 side view

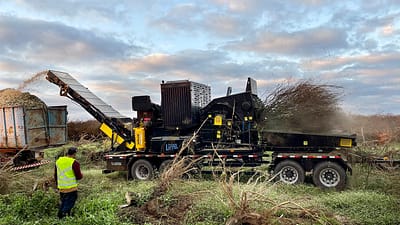

1400 showing feed tray fully loaded

1400 showing feed tray fully loaded


Hurcules 1400 Videos




Forestry Chipper  and Grinder Model DRAGON 1200

Applications
• Chip production in the industry
• Service providers for chip production
• Large-scale forest chip production
• Forest Cleaning
• Chopping of eucalyptus trunks and trees
• Chopping of stumps and forest canopy
• Use of biomass generated in the opening of roads
Features
• Largest truck-mountable wood chipper
• Various assembly options: Truck, Forwarder, Towable and self-propelled
• Design allows the incorporation of crane for self-feeding
• Horizontal feed opening: 1200 mm
Optional: side traction rollers and ascending traction belt
• Steel feeding mat
• Extraction of material by belt at a height of 5 m
• Self-tensioning clutch (maintains the correct tension on the belts)
• Oversized Radiators and Programmable Reversible Helix
• Interchangeable sieves (no need to disassemble part of the machine)
• Remote control with the main functions of the machine
• Automatic feed and throttle control

Technical specifications

Model: Dragon 1200

  • Overall dimensions (LxWxH): 6600 x 3300 x 3700 mm
  • Cutting opening (WxH): 1200 x 800 / 1200 x 1000 mm
  • Rotor diameter: 900 mm
  • Engine power: 411 – 611 HP
  • Estimated production: 220 m³/h
  • Estimated weight: 12 – 16 Ton

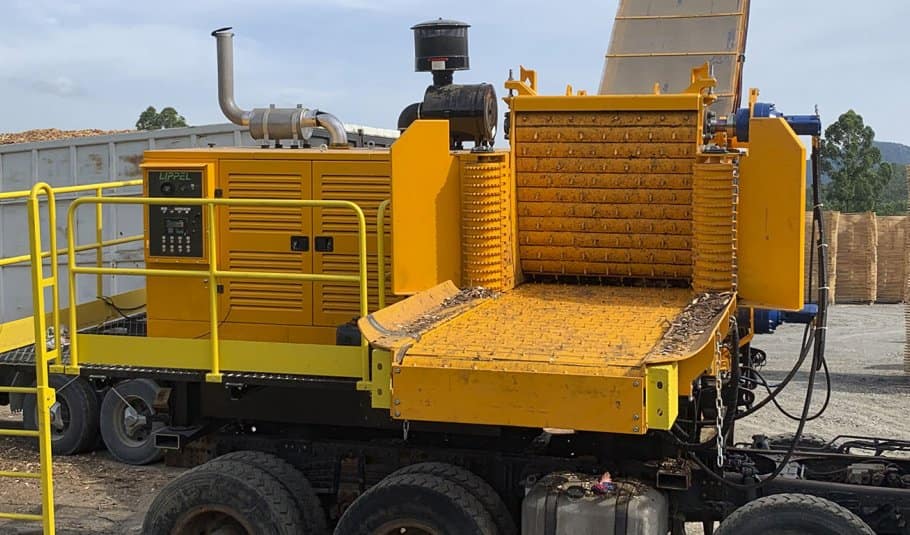

Dragon 1200 with vertical agressive side and front rollers and bed

Dragon 1200 with vertical agressive side and front rollers and bed

Must watch this one!!!

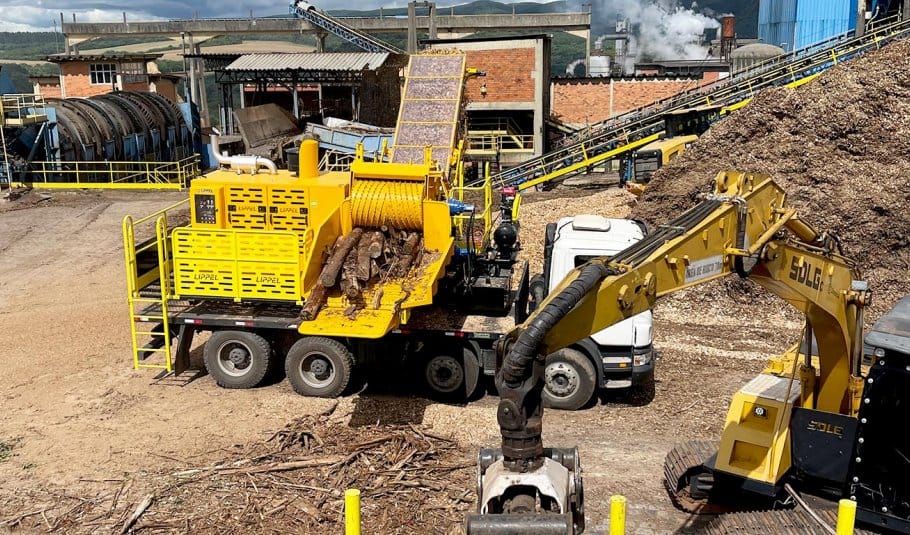

Dragon 12 mounted on specialized truck

Dragon 12 mounted on specialized truck

Dragon 1200 whole tree chipper Ready for action!

Dragon 1200 whole tree chipper Ready for action!



Schematic o Dragon 1200 illustrating feed!

Schematic o Dragon 1200 illustrating feed!

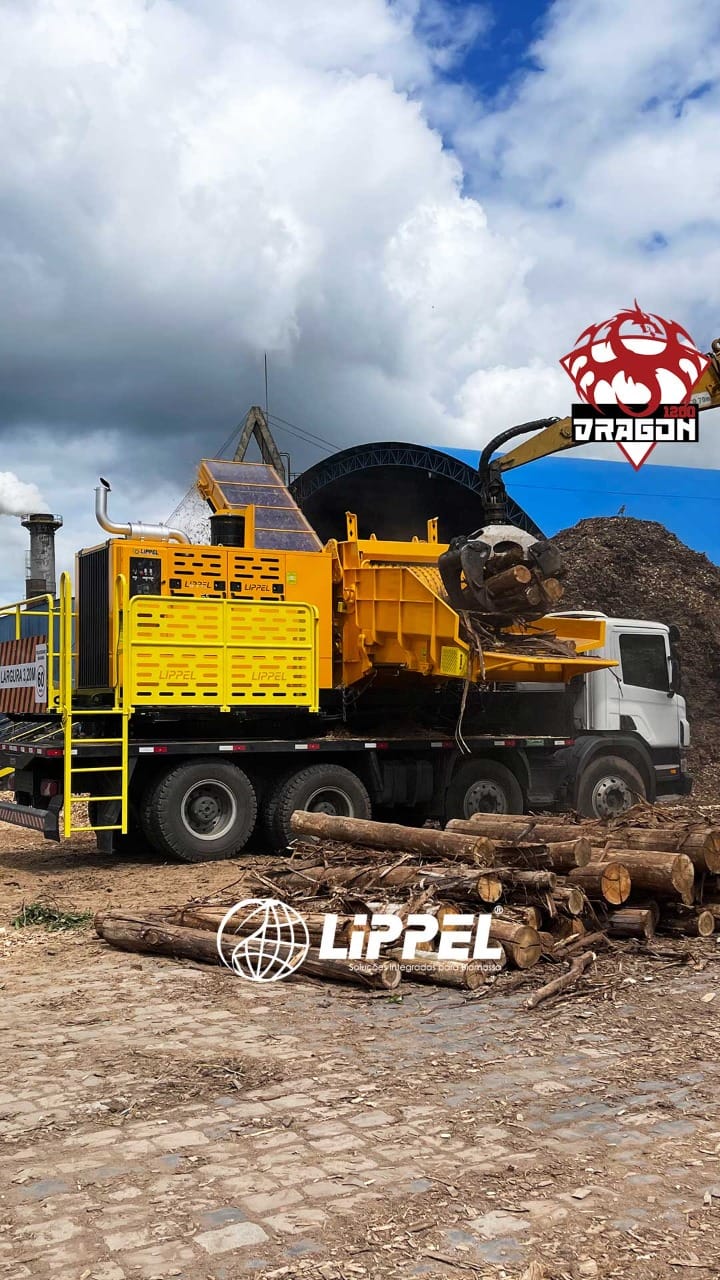

Dragon 1200 mounted on truck 1) overtruck- without the wheels and the machine it is inserted over a truck ( the truck we do not provide)-

Dragon 1200 mounted on truck 1) overtruck- without the wheels and the machine it is inserted over a truck ( the truck we do not provide)-


Dragon 1200 Videos

Grinder format of Dragon 1200:
