Chipper + Grinder Hydraulic feed tractor & trailer mounted

Used for the production and preparation of feed from selected bush and trees.

Built for chipping and grinding bushfeed bush and trees into a consistency ideal for cattle, goat and game feed in one pass

Tractor Mounted Hydraulic feed wood chipper with grinder

Wood chipper with grinder Hydraulic feed Tractor mounted

Wood chipper with grinder Hydraulic feed Tractor mounted with optional grinder. As chipper 250mm capacity then flip lever to grind through 8 to 20mm screen

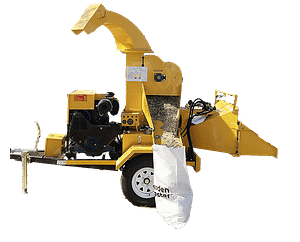

Trailer Mounted Hydraulic feed wood chipper with grinder

Wood chipper Hydraulic feed with optional grinder

Wood chipper Hydraulic feed with optional grinder on trailer Capacity as chipper 250mm then flip lever to grind through 8 to 20mm screen

To navigate to our Full Info Chipper Hydraulic feed tractor mounted chipper page with Pics, Videos, Reading and its downloads !

Technical Specs on the grinder option

  • Production: 4 to 5 cu meter grindings per hour
  • Blades: 40 x special profile blades fitted
  • Blade bolts: 4x Super H/D long bolts used
  • Screens Available:  8, 10, 12, 15, 20mm holed screens 4 to 6 mm thick steel used.
  • This option to be ordered when new machine ordered!

Pictures showing Grinder features

Grinder head with lever to engage chipping only or grinding only!

225 Grinder head explained

225 Grinder head explained

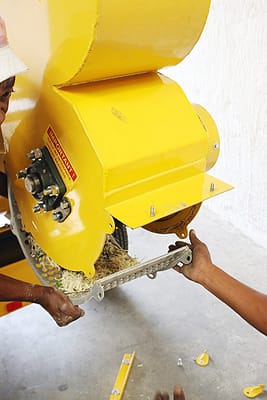

Changing screen for grinding:

Screen on 225 wood chipper with grinder

Screen on 225 wood chipper with grinder!

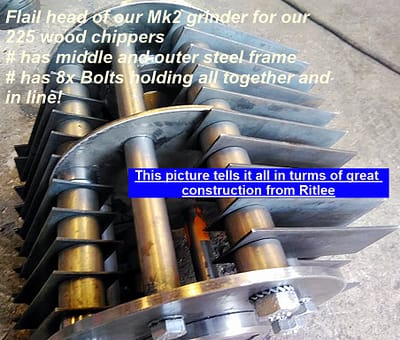

Grinder head with reinforcing centre support plate, plus 4x reinforcing alignment bolts:

Grinder head fitted on all Mk2 chippers with grinder

Grinder head fitted on all Mk2 chippers with grinder

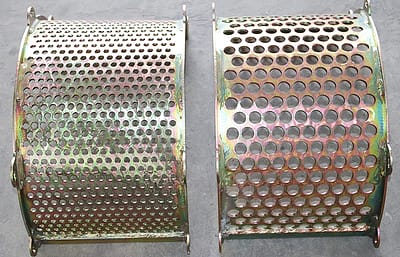

Grinder screens 3mm thick! 8, 10, 12, 15, 18, 20mm holes:

Screens to fit all Grinders

Screens to fit all Grinders

Double H Tensile blade bolts:

Grinder blade and long HT bolt

Grinder blade and long HT bolt

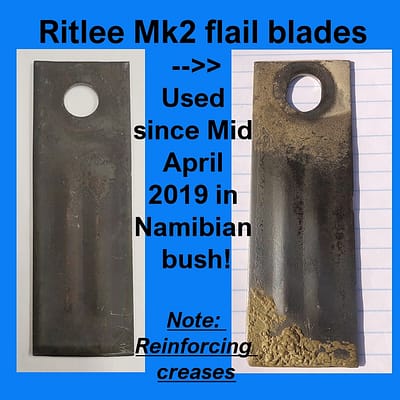

Blades with reinforcing:

M3 Grindwer blades with reinforcing hollow

M3 Grindwer blades with reinforcing hollow!

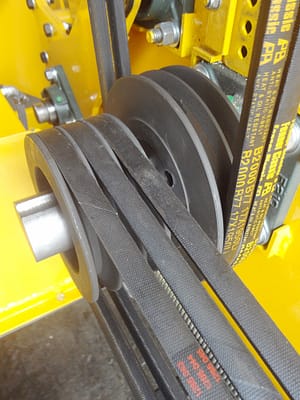

Pullies used for drive to grinder head

Taper lock over counter Pullies used — here deriving B section belts

Pullies fitted here drum and grinder drive shown

Pullies fitted here drum and grinder drive shown!

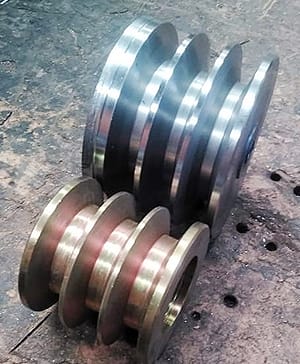

Larger sized pully with large bearing and easily tensionable

Not 40% larger jockey pully with larger Tamken bearing fitted with inner seal taken out!

Larger Pullies and inner bearings

Larger Pullies and inner bearings

Easy to tension and lubrecate

well mounted and supported and lubricatable large pully

well mounted and supported and lubricate-able large pully!

Pully bolt which is easily greased

Pully bolt which is easily greased
