Biochar and charcoal kiln Vertical and horizontal 2m3 up to 14m3 (4 Models)
Kilns 2,0 to 14.0 m3 sized all with condensers and syngas (Tar, Wood vinegar (pyroligneous acid), Water vapor, Heavy hydrocarbons.) collection systems for reburn!
fitted.
- Both Vertical and horizontal profile available.
- Built using either Stainless steel 1050c or Boiler Steel plate 550c
- Syngas is recycled trough condenser and combusted!
- Retort Kiln Sealed vessel heated indirectly producing consistent char!
- Hot Commissioning: First high tempreture operation of a kiln to verify thermal performance, airflow, safety systems, metal expansion behavior, and operational stability.
Click to add this item to cart.
Product Description
Horizontal and Vertical kilns of various sizes with outputs of Biochar, charcoal and wood Vinigar.
All units are supplied with:
- Kilns all manufactured of either Stainless steel (OR) Boiler Plate steel.
- You to please choose which material to be manufactured in.
- All Vertical and Horizontal batched fully insulated with 1400c fire blanket.
- Fitted with Built in condenser bank for wood Vinigar collection.
- Insulation material used (Rated to 1400 deg c)
- Thermocouple for internal tempreture monitoring
- Each unit is hot commissioned before delivery– Customer can be part of this process with training given on arrangement
Not included:
- VAT
- Transport and shipping from factory in Kimberly.
Condenser system:– For collection of wood Vinigar
Condenser system for extraction of wood Vinigar
Because of the Syngas condenser for reburn, a major % of the water vapor, tar, Heavy hydrocarbons is directed this way!
This is redirected for burn and making your wood Vinigar more pure!
Syngas condenser for reburn
Syngas is condensed and re-burned.
Tar condenser or pyrolysis vapor condenser
- Syngas itself does NOT condense (it’s mainly CO, H₂, CH₄)
- What does condense is:
- Tar, Wood vinegar (pyroligneous acid), Water vapor, Heavy hydrocarbons.
- This is all directed for reburn!
- This improving the quality and purity of the wood vinegar processed in this system!
Kilns available from Ritlee.
Horizontal Mobile Kilns.
Optional:
- Manufactured from: Stainless steel or boiler plate steel– Please state.
- Manufactured with skid runners if required.
- Please let us know if you are wanting pricing on a trailer
Feature:
- fully insulated with 1400C fire blanket
- Max tempreturs: Stainlss: 1050 c and Boiler Plate 550 c
- Batch Cycle time: 5 to 8 hours
- Feedstock type: Woody biomass, tree stumps and branches.
- Outputs: Biochar and Wood Vinegar
- Syngas: re-cycled through condenser and combusted
Sizes: 2m3 and 3m3 kilns

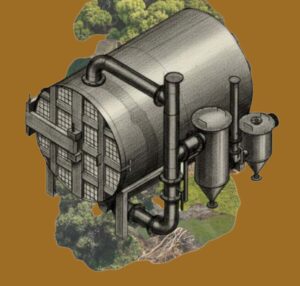

2 and 3 cu meter kilns which can be manufactured
Vertical Kins
Optional:
- Manufactured from: Stainless steel or boiler plate steel– Please state.
- Built into Container
- Please let us know sizes required in container
Feature:
- fully insulated with 1400C fire blanket
- Max tempreturs: Stainlss: 1050 c and Boiler Plate 550 c
- Batch Cycle time: 5 to 8 hours
- Feedstock type: Woody biomass, tree stumps and branches.
- Outputs: Biochar and Wood Vinegar
- Syngas: re-cycled through condenser and combusted
Sizes: Vertical: 4,1 m3 (Optional Vertical 16m3 ) Horizontal 6,6 m3

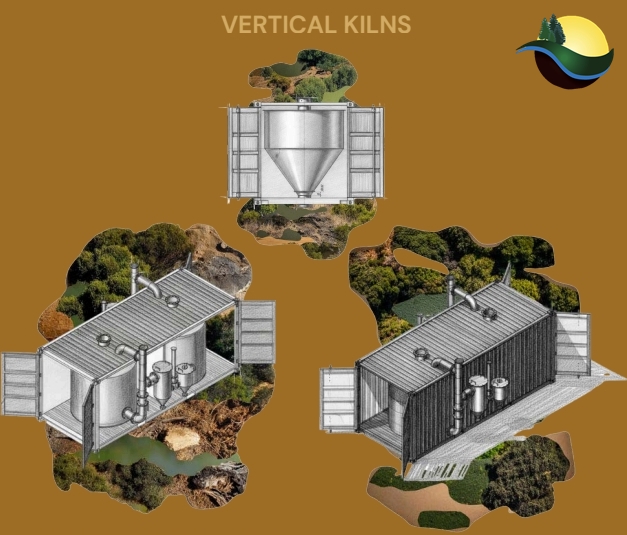

Combo Vertical and horizontal kins available
Horizontal Kins
Optional:
- Manufactured from: Stainless steel GR 310 4.5mm or 6mm boiler plate steel– Please state.
- Bult into container
- Single 6.6 m3 OR Double 13.2 m3
Feature:
- fully insulated with 1400C fire blanket
- Max tempreturs: Stainlss: 1050 c and Boiler Plate 550 c
- Batch Cycle time: 5 to 8 hours
- Feedstock type: Woody biomass, tree stumps and branches.
- Outputs: Biochar and Wood Vinegar
- Syngas: re-cycled through condenser and combusted
Sizes: Horizontal 6,6 m3 and 13.2 m3

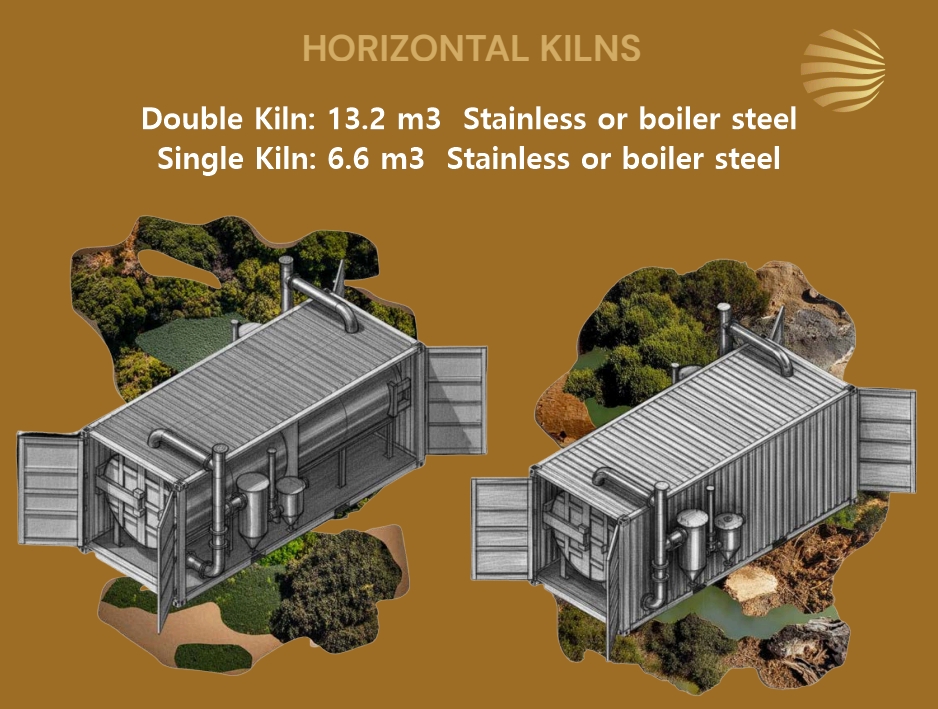

13.3 & 6.6 m3 Horizontal kiln
Horizontal Kins
Optional:
- Manufactured from: Stainless steel GR 310 4.5mm or 6mm boiler plate steel– Please state.
- Bult into container
- Single 14 m3 or double door 13,2m3
Feature:
- fully insulated with 1400C fire blanket
- Max tempreturs: Stainlss: 1050 c and Boiler Plate 550 c
- Batch Cycle time: 5 to 8 hours
- Feedstock type: Woody biomass, tree stumps and branches.
- Outputs: Biochar and Wood Vinegar
- Syngas: re-cycled through condenser and combusted
Sizes: Horizontal 14M3 Single Door Or 13,2m3 Doble Door.
Horizontal both single and double door 13, 2 and 14m3

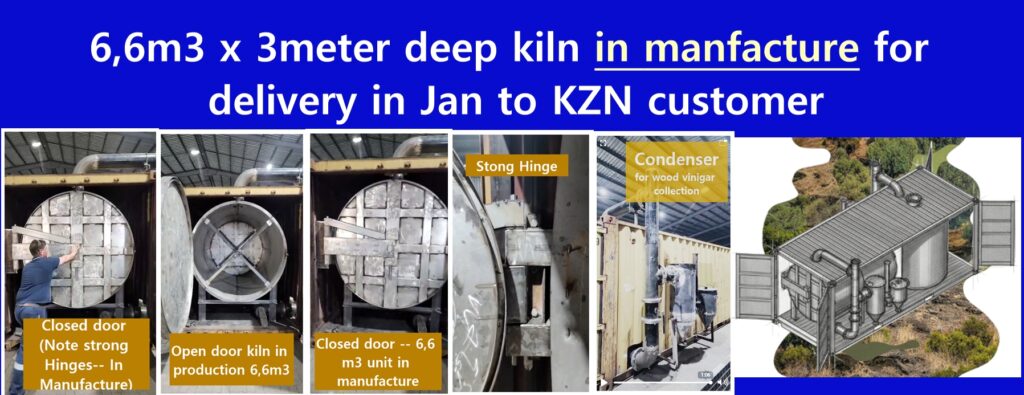

6,6 m3 in production for delivery January, 2026 into mid KZN.
6,6m3 kiln in manufacture for delivery in KZN Jan 2026
Please give Marc a call to whats app you a copy of the video taken of the manufacturing progress.
084534499
Video Of: 6,6cu meter kiln in production made of Stainless steel For delivery Mid-January 2026
To Explanation of:
Biochar, Wood Vinigar, Charging Biochar! Uses of all!
